What is 25m3/h read mix plant?25m3/h read mix plant also called hzs25 concrete batching plant and belong to small concrete batching plant with high performance cost ratio for small-scale construction site.
Model：HZS25
Maximum productivity： 25
Discharging height(m)： 1.5-3.8
Working cycle time(s)： 72
Outline dimension(mm)： 11693×13060×17245
Total power (kw)： 50
Total weight： 16T

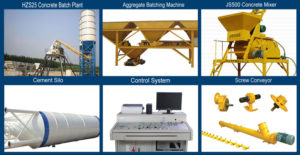

25m3/h read mix plant consists of the mixing system, batching system, metering system and control system. It adopts JS500 concrete mixer with 0.5 m³ per batch. This batching plant transports aggregate with hopper, which saves the footprint and improves land utilization. 25m3/h read mix plant is equipped with PLD800 aggregate bin with 2 or 3 silos. According to customers’ actual demands, Camelway configures fully automatic, semi-automatic or manual control systems. The fully automatic control system adopts computer control to realize automatic control, production management and report printing of the production process.
This read mix concrete plant has the characteristics such as compact structure, convenient disassembly, small footprint, easy transition, ect. It is especially suitable for small and medium-sized or temporary projects, prefabricated parts factories, brick factories and so on.
1. How much is the 25m3/h read mix plant?
The price of the concrete plant is affected by multiple factors, such as raw material cost, logistics transportation cost, labor cost, ect. In addition, the configuration of the concrete plant is adapted to the customer’s demands. Due to different configurations, the price is different, so we are unable to provide online quotes. We will send you the configuration plan and quotation after you send us your requirements.
2. Delivery time of 25m3/h read mix plant:
If the capacity of concrete plant is below 60m³/h, it will be sent within 7 days. If the capacity of concrete plant is above 60m³/h, it will be sent within one month.
Note of read mix plant:
1. The capacity of the concrete plant is theoretical productivity, and the actual capacity may be less than the theoretical value.
2. The floor space refers to the footprint of the main body of the concrete batching plant. It does not include the floor space of the aggregate yard, living area, laboratory and other functional areas. The concrete plant of the same type may adopt different structural forms according to the needs of users. The footprint and standard footprint are different.
3. The discharging height is the receiving height of the standard concrete mixer truck. It can be adjusted according to the actual needs.
